Maps of the Operation Brevity

Post by jurisnik » 22 Sep 2021 13:26

Maps of the Operation Brevity

About the Series
This article is part of a series: Maps of the Desert War. In this series I explore battles and operations that took place during the WW2 North African Campaign (or more precisely – its Western Desert part). For decades I've been reading about the campaign, but I've often had hard time to find maps that go with the riveting stories I read. But since I've started the research for my new game design, I needed to have a well researched and detailed maps, in order to create game scenarios. And this is how this series came to be - as a result of my ongoing research.

After a swift and unexpected offensive, the Axis forces have retaken Cyrenaica and put the port of Tobruk under siege. From April 1941 onwards the Axis forces were firmly entrenchend around the Tobruk fortress, leaving the besieged 9th Australian division in a very precarious position. The British C-in-C General Wavell was under pressure by Whitehall to initiate an offensive as soon as possible.

The British have devised an operation with a goal to recapture the strategically important Halfaya Pass and to clear the frontier area of the enemy forces. Secondary objective was to advance towards Tobruk, if the situation permitted that. It was named: Operation Brevity.

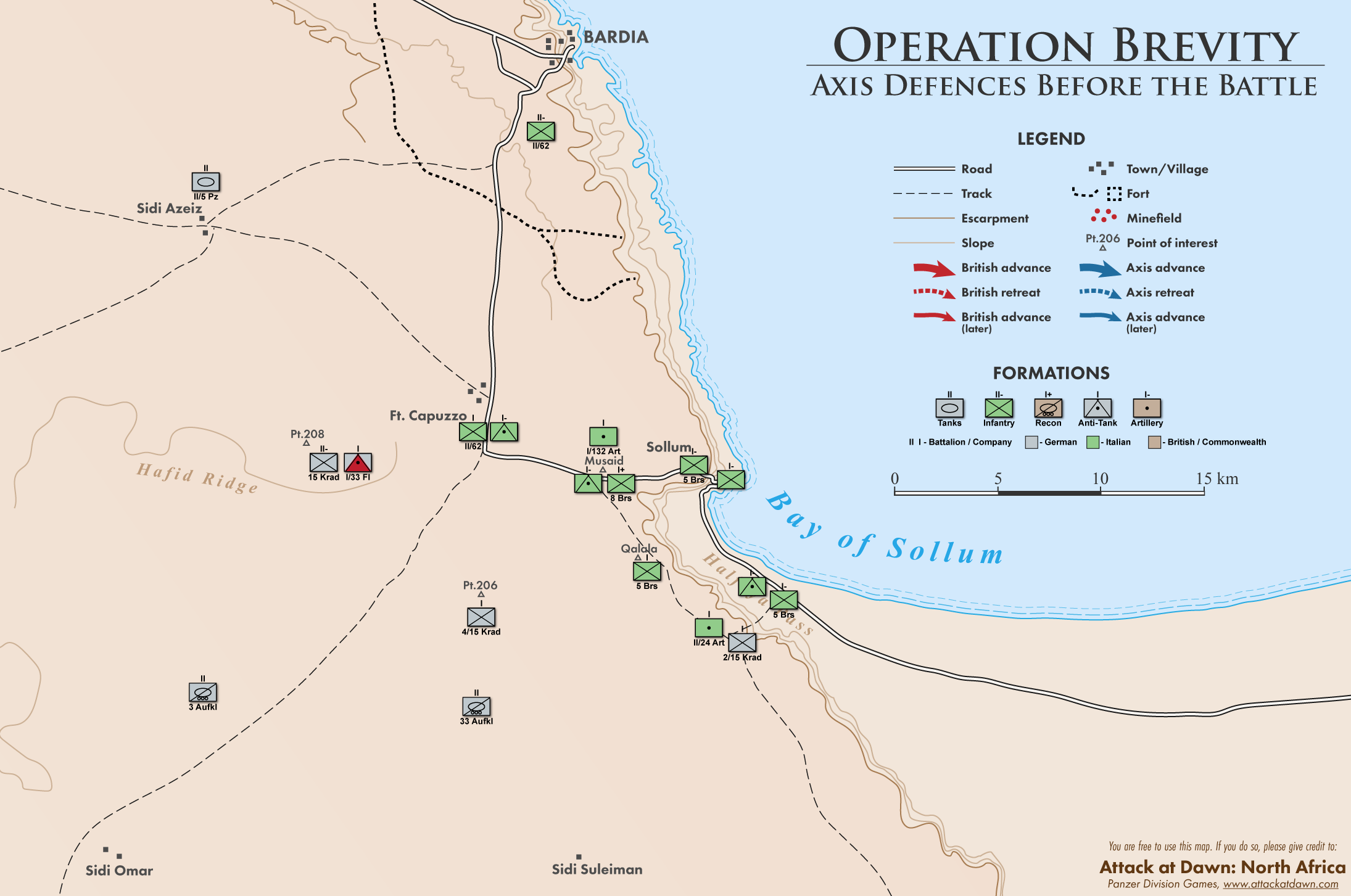

Axis Defences
The Libya-Egypt frontier was guarded by Kampfgruppe Herff, a mixture of German and Italian forces, infantry, tanks and AT guns spread out from Hafid Ridge to Halfaya Pass. The line started at the coast with positions at Sollum and Halfaya Pass, and went through the strongpoints of Bir Musaid, Fort Capuzzo and Bir Hafid (at Hafid Ridge). In the rear was the fortress Bardia, with Italian infantry battalion and German panzer battalion in reserve. Advanced recon troops were pushed forward, around Sidi Suleiman and Sidi Omar.


The German-Italian order of battle was as follows:

Halfaya Pass (below escarpment)
2 Pl (platoons) - 5o Reggimento bersaglieri
2 Pl – 47/32 guns

Halfaya Pass (above escarpment)
2./15. Kradschuetzen Bataillon
1 Bty (battery) - II/24o Reggimento artiglieria

1 Coy (company) - 5o Reggimento bersaglieri

Lower Sollum
1 Pl - 5o Reggimento bersaglieri
1 Pl - Arditi
1 Pl - 47/32 guns

Upper Sollum
1 Coy - 5o Reggimento bersaglieri

Bir Musaid
1 Coy - 8o Reggimento bersaglieri
2 Pl - 47/32 guns
1 Bty - I/132o Reggimento artiglieria

Fort Capuzzo
1 Coy - II/62o Reggimento motorizzato
2 Pl - 47/32 guns

Hafid Ridge
15. Kradschuetzen Bataillon (reduced)
1 Bty - I/33. Flak Regiment

Point 206
4./15. Kradschuetzen Bataillon

II/5. Panzer Regiment
I/61o Reggimento motorizzato

Kampfgruppe Cramer (arrived as reinforcements on 16th)
I/8. Panzer Regiment
1 Bty - I/33. Flak Regiment

British plan
The British plan was to advance in 3 columns: 22nd Guards Brigade group, 7th Armoured Brigade group and Coast group. The commander of the mixed force was Brigadier William Gott.

22nd Guards Brigade group woud move centrally, above the escarpment. It had the task to clear top of Halfaya Pass, secure Fort Capuzzo and exploit northwards.

7th Armoured Brigade group was positioned on the left (desert) flank. It was ordered to advance northwards toward (towards Sidi Azeiz), protect the flank and destroy encountered enemy’s forces.

Coast Group was to advance over the coastal road and towards Sollum. It had the task of preventing enemy counterattack from coastal direction, and to capture lower Halfaya Pass and Sollum.

The British order of battle was as follows:

Coast Group
2nd Rifle Brigade (minus 1 company)
1 Bty - 2/2nd Australian Anti-tank Regiment
8th Field Artillery Regiment

22nd Guards Brigade group
1st Durham Light Infantry
2nd Scots Guards
3rd Coldstream Guards
4th Royal Tank Regiment (24 Matilda Mk II Infantry tanks)
1 Tp (troop) - 2/3rd Australian Anti-tank Regiment

7th Armoured Brigade group
2nd Royal Tank Regiment (29 Cruiser tanks)
6th Australian Division Cavalry (28 Light Tank Mk VIB)
11th Hussars
1 Tp - 2/3rd Australian Anti-tank Regiment

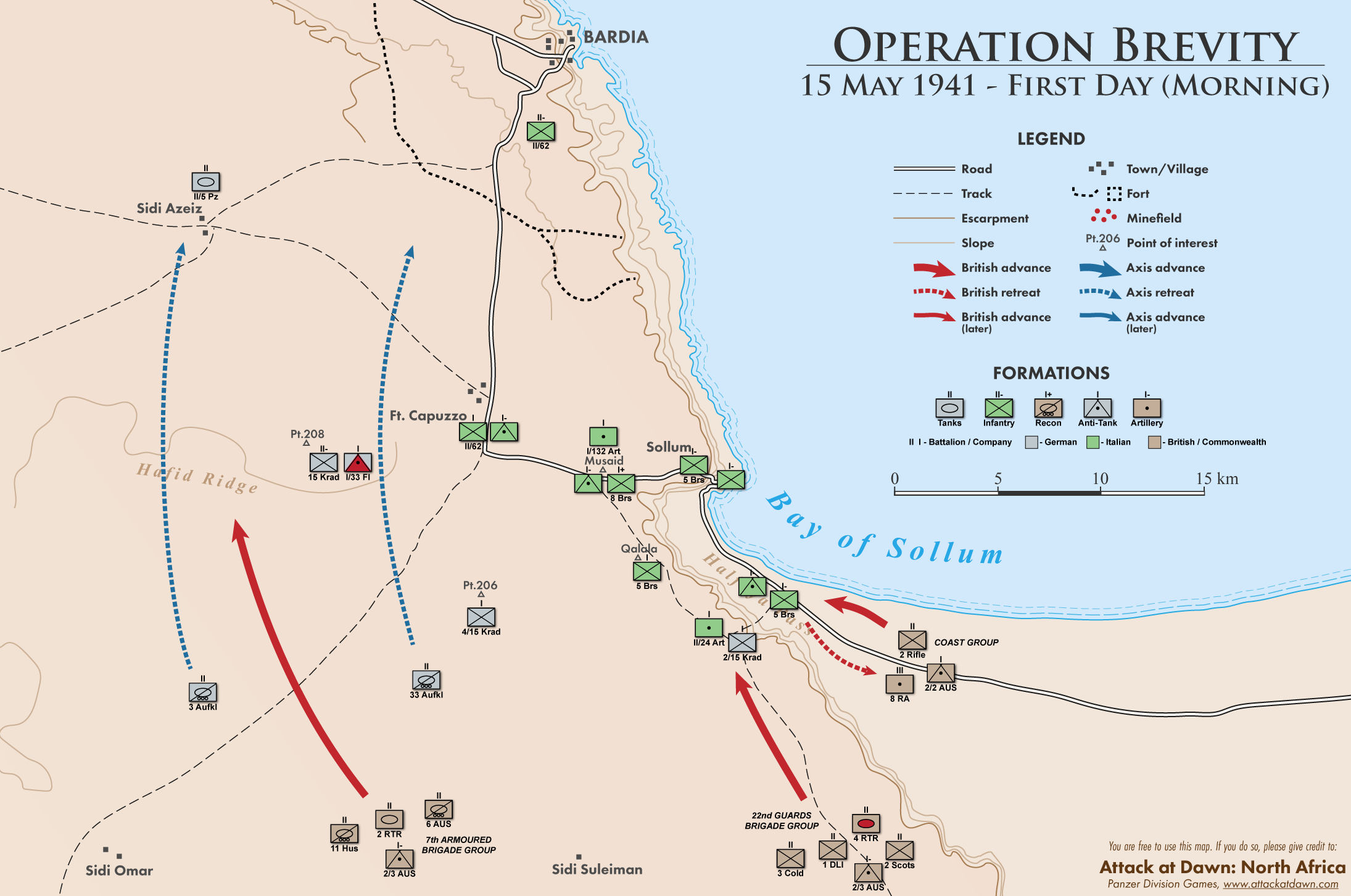

Day 1
The operation starts at 0550 on 15 May 1941, with Hurricanes of No. 274 Squadron maintaining a standing patrol over advancing columns.


22nd Guards (centre)
2nd Scots Guards and 4th Royal Tank Regiment run into heavy opposition from a company of Bersaglieri, supported by anti-tank guns. Italians put up a fight, but their 47 mm anti-tank guns cannot penetrate the armour of Matilda infantry tanks. The British finally take the position and push on northwards. By 1015 they capture Bir Wair and Musaid.

Axis Command
The Axis command believes that the offensive involves more than 100 tanks (it is actually half than that), and orders redeployment of forces around Tobruk, in order to prevent any attempt of relieving the siege. A reinforcement kampfgruppe is sent towards Sidi Azeiz, commanded by Lietenant-Colonel Hans Cramer and consisting of I/8. Panzer Regiment and a Flak-Batterie (with 88 mm guns). Another group commanded by General von Esebeck will be sent the following day, but it will come too late to take part in the action. II/5. Panzer Regiment is called for from its reserve position around Bardia, and redeployed towards Fort Capuzzo.

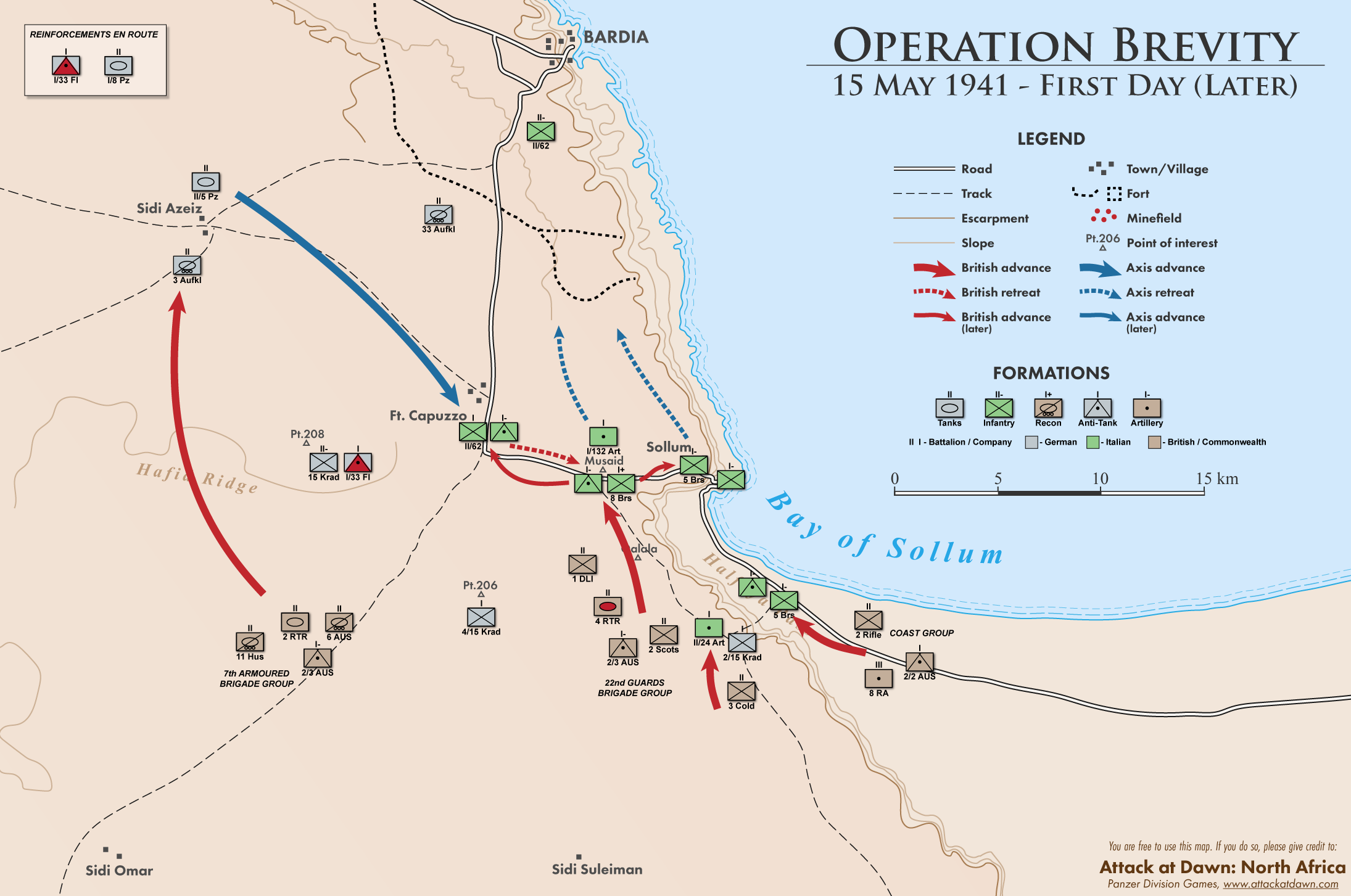

22nd Guards (centre)
1st Durham Light Infantry and A squadron of 4th Royal Tank Regiment press on to Fort Capuzzo. Near the fort there are 20-30 German panzers waiting for them. The fight ensues, and the Germans are forced to withdraw. In spite of the vigorous defence, the British capture the fort just before midday. II/5. Panzer Regiment later recovers and counterattacks Fort Capuzzo, driving the 1st Durham Light Infantry away by 1400, taking 70 British prisoners in the process.


Coast group
Coast group moves to the lower Halfaya Pass position, but is held up all morning by determined Italian resistance. Finally before the end of the day, S company of 2nd Rifle Brigade supported by Australian anti-tank gunners fighting as infantry overrun the Italian position and capture 124 prisoners.

7th Armoured Brigade group (desert flank)
7th Armoured Brigade group advances northwards as planned, chasing away the screening German recon units. By midday the group reaches position west of Fort Capuzzo, and by the evening they reach as far north as Sidi Azeiz. German recon units fall back to Sidi Azeiz and north of Fort Capuzzo.

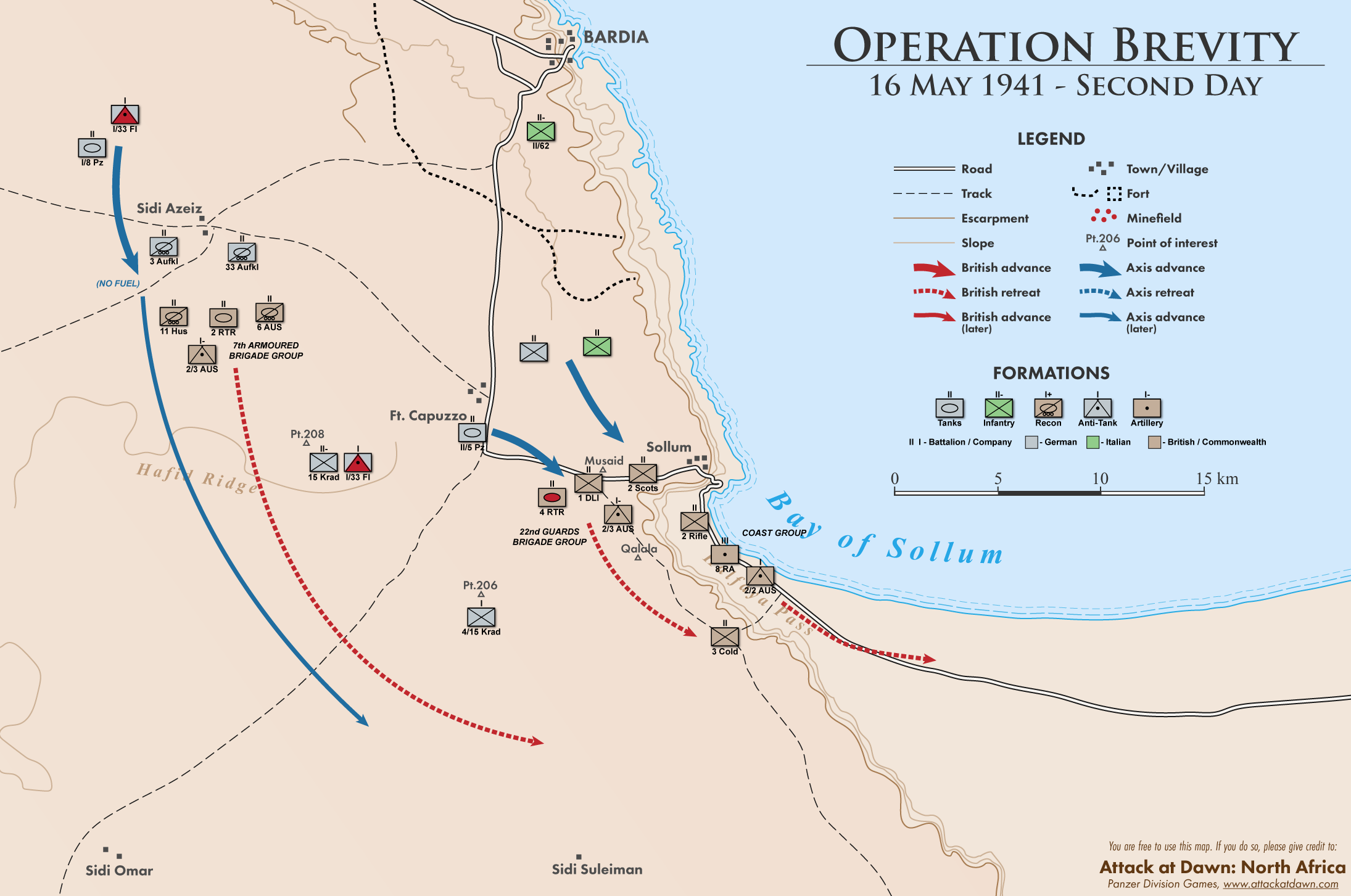

Day 2
During the night, Brigadier Gott realises that the central 22nd Guards Brigade group is vulnerable to German armoured counterattacks. So he decides to withdraw that group during the early hours of the second day. By 1000 the infantry takes up new positions at Halfaya Pass. 7th Armoured Brigade group is still left west of Fort Capuzzo.

German reinforcement group with I/8. Panzer Regiment and Flak-Batterie reach Sidi Azeiz around 0300, but soon run out of fuel and are unable to move. The German advance resumes later in the day, with armoured groups attacking from Fort Capuzzo and Sidi Azeiz. The British withdraw their desert flank and the frontline stabilises between Sidi Omar-Sidi Suleiman-Sollum. The Brevity ends with British still in control of Halfaya Pass.


The British failed to achieve most of their objectives, although the strategically important Halfaya Pass was taken. The highest British casualties were to the 1st Durham Light Infantry, which had lost 196 troops (killed, wounded or captured). The British also had 5 infantry tanks lost, and 13 damaged.

The Germans lost 258 men (killed, wounded or captured) and Italians around 400 troops. 3 panzers were destroyed.

Operation Brevity had shown to Rommel the importance of the Halfaya Pass. The control of the pass enabled one to have a good supply route, a vital prerequisite in mobile desert warfare. On 27 May, he launched Operation Skorpion, during which the German mobile units recaptured the pass and took the firm control of the frontier once again.


Tank Combat in North Africa: The Opening Rounds Operations Sonnenblume, Brevity, Skorpion and Battleaxe
Schiffer Military History, Thomas L. Jentz. Atglen, PA, 1998.

Mediterranean and Middle East Volume II: “The Germans Come to the Help of their Ally”
Pickle Partners Publishing, General I.S.O. Playfair. 2014.

Le Operazioni In Africa Settentrionale Vol. II Tobruk (Marzo 1941-Gennaio 1942)
Stato maggiore dell'esercito, Ufficio storico, Mario Montanari. 1993.

Battle Orders: Rommel's Afrika Korps, Tobruk to El Alamein
Osprey Publishing, Pier Paolo Battisteli. Oxford, UK, 2006.

The Crucible of War: Western Desert 1941
Paragon House, Barrie Pitt. New York, 1989.


If you wish to support the game, be sure to wishlist it on STEAM:

If you wish to watch the YouTube series in which I will show detailed gameplay of each of these operations described here, subscribe to our YouTube channel: ... N0pplI7fCg

If you wish to check the game's website, you can find it here:

And if you wish to download the full-sized maps, you can do it in the Gallery section of the game's website: Just go to the homepage and you'll find Gallery there. The maps are FREE TO USE (we only kindly ask you to credit us when you do so).

Thank you for your patience and see you next time on the desert battlefields!
“Now this is not the end. It is not even the beginning of the end. But it is, perhaps, the end of the beginning.”
— Sir Winston Churchill, following the Second Battle of El Alamein

Attack at Dawn: North Africa website:

User avatar
Posts: 4554
Joined: 25 Aug 2008 09:34
Location: The late JBond

Re: Maps of the Operation Brevity

Post by Urmel » 24 Sep 2021 11:26

Your maps are fantastic and I owe you thanks - apologies for not responding to your email!
The enemy had superiority in numbers, his tanks were more heavily armoured, they had larger calibre guns with nearly twice the effective range of ours, and their telescopes were superior. 5 RTR 19/11/41

The CRUSADER Project - The Winter Battle 1941/42

User avatar
Posts: 67
Joined: 12 Jul 2011 22:41
Location: Split, Croatia

Re: Maps of the Operation Brevity

Post by jurisnik » 24 Sep 2021 12:27

Cheers Urmel! No worries, I figured you missed it. Glad you like the maps 🙂
“Now this is not the end. It is not even the beginning of the end. But it is, perhaps, the end of the beginning.”
— Sir Winston Churchill, following the Second Battle of El Alamein

Attack at Dawn: North Africa website:

Posts: 2201
Joined: 24 Jun 2007 22:54
Location: Lusitania

Re: Maps of the Operation Brevity

Post by Dili » 14 Oct 2021 00:34

Nice maps jurisnik. Can i ask what software did you used to do them?

User avatar
Posts: 67
Joined: 12 Jul 2011 22:41
Location: Split, Croatia

Re: Maps of the Operation Brevity

Post by jurisnik » 14 Oct 2021 14:27

Thanks! I make them using Inkscape. Vector graphics is better for these kind of maps than the raster graphics.
“Now this is not the end. It is not even the beginning of the end. But it is, perhaps, the end of the beginning.”
— Sir Winston Churchill, following the Second Battle of El Alamein

Attack at Dawn: North Africa website:
